LED Panel Light 2×4

LED Panels

  • BL-P4-40W CNS/CDS
  • BL-P4-60W CNS/CDS

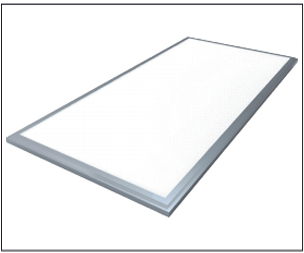

led-image-1            lightbox-ledpanel2x2B

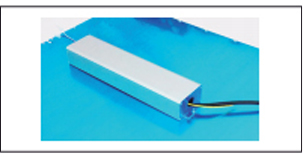

led-image-2                lightbox-ledpanel2x2f
lightbox-ledpanel2x2s

Features



  • Luminosity Efficacy: >110lm/w (DLC)
  • Voltage input: 100~277V ac
  • LED chips: SMD 2835
  • Color Temperature: 3000K, 4000K, 5000K
  • CRI: Ra>80 (DLC), Ra>70 (others)
  • Beam Angle: 150 degree
  • Application: indoor only
  • Installation: Suspension, Wall Mount, Recessed, Ceiling Mount
  • Warranty: 5 years
  • Certificate: UL/cUL(E359062),DLC





Installation

wall-screw



wall-hanging-pannel



combining-wall-panel



wallmount-installation

Recessed Mount

Ceiling1



Ceiling2



Ceiling3



Ceiling4



Ceiling5
Ceiling6

Suspension

suspension-image



suspension1



suspension2
suspension3



suspension4

Ceiling Mount

Ceiling-Mount1



Ceiling-Mount2

Wiring Diagram

Wiring-Diagram1



Wiring-Diagram2

dimension
packaging1
packaging2
packaging_3
lux-chart

Notice For User

  • Please turn off power before install or change assembly parts.
  • The input voltage and lamps should be matched, after connecting the power line, Please make sure the wiring section is insulated.
  • No-professionals, must not install and disassemble the lamps.
